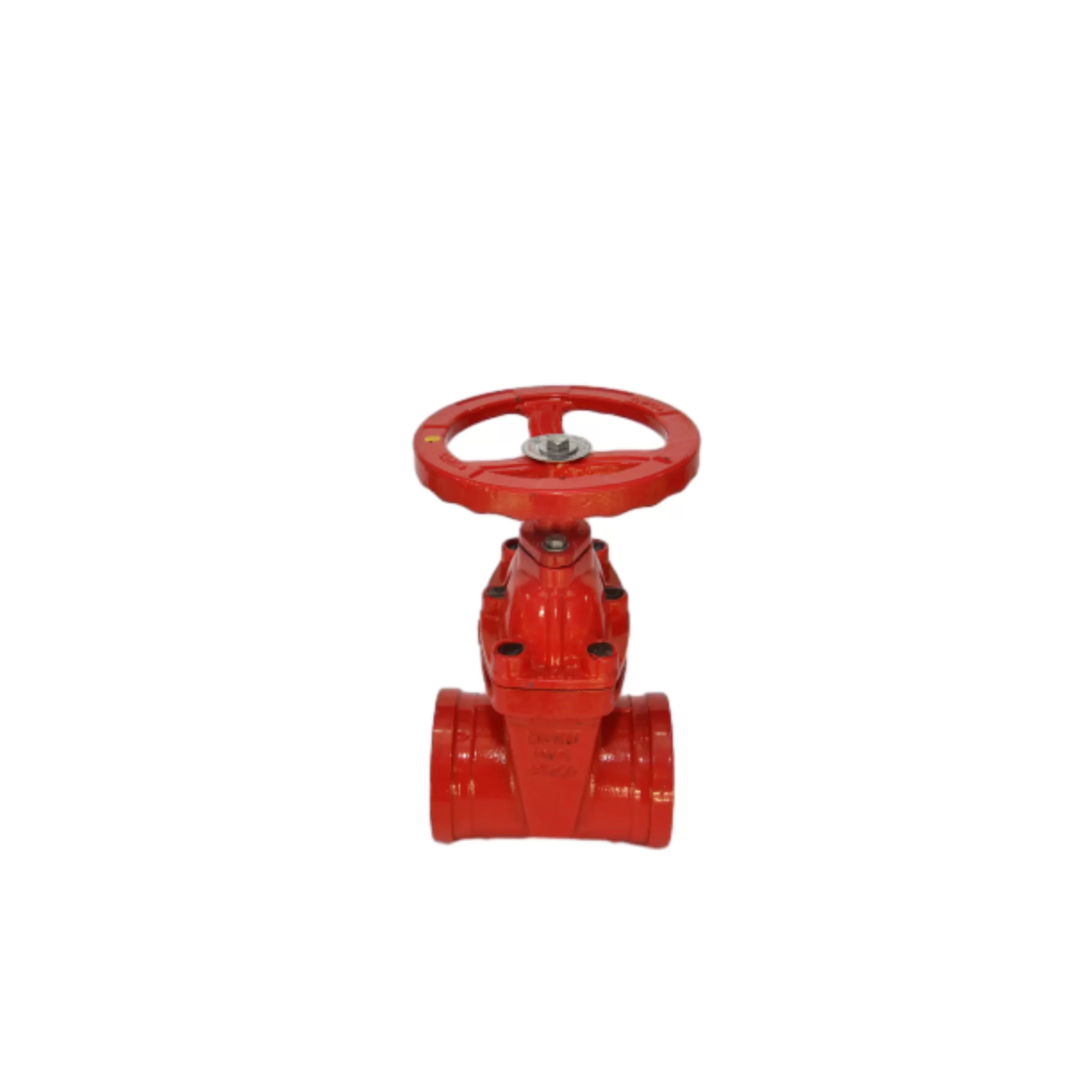

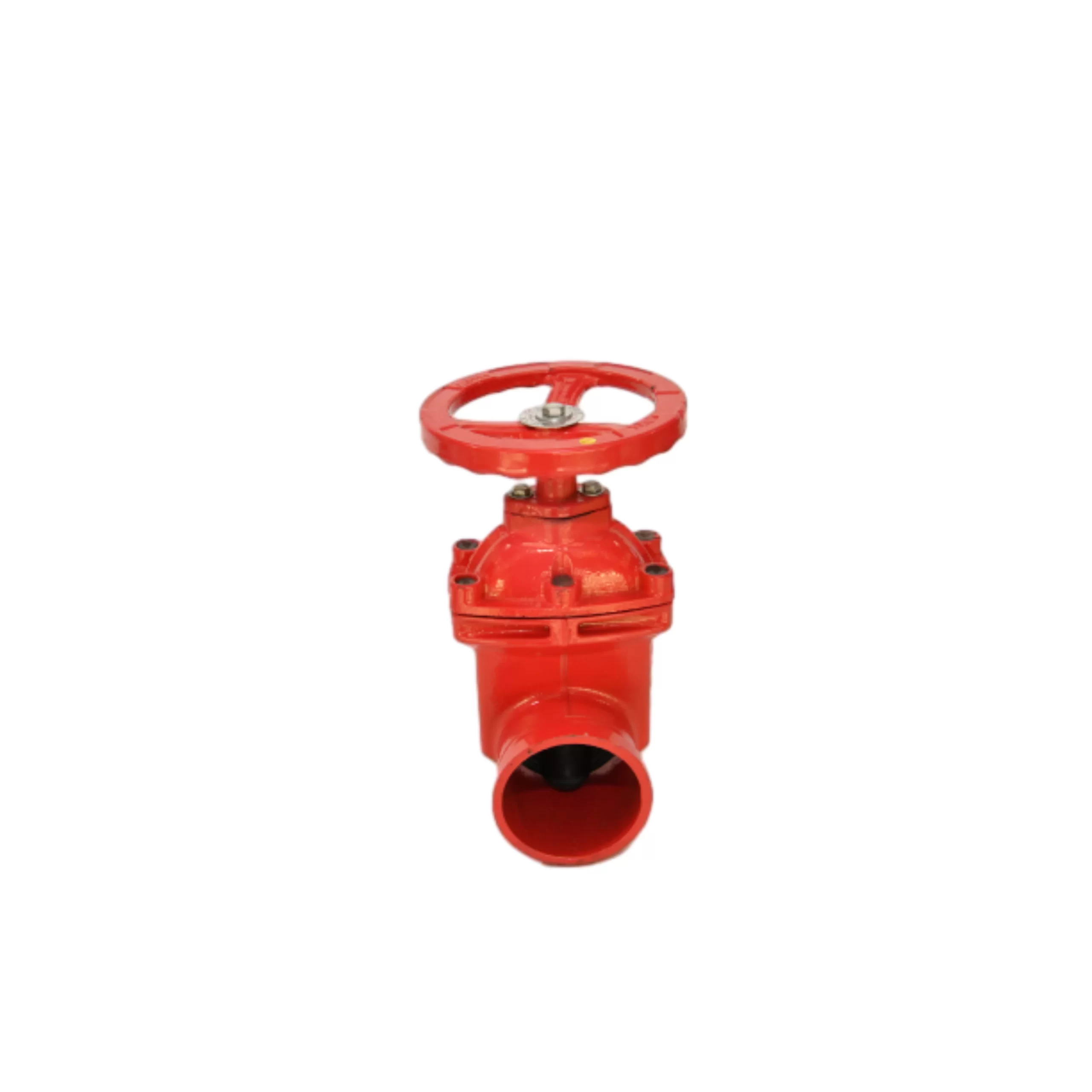

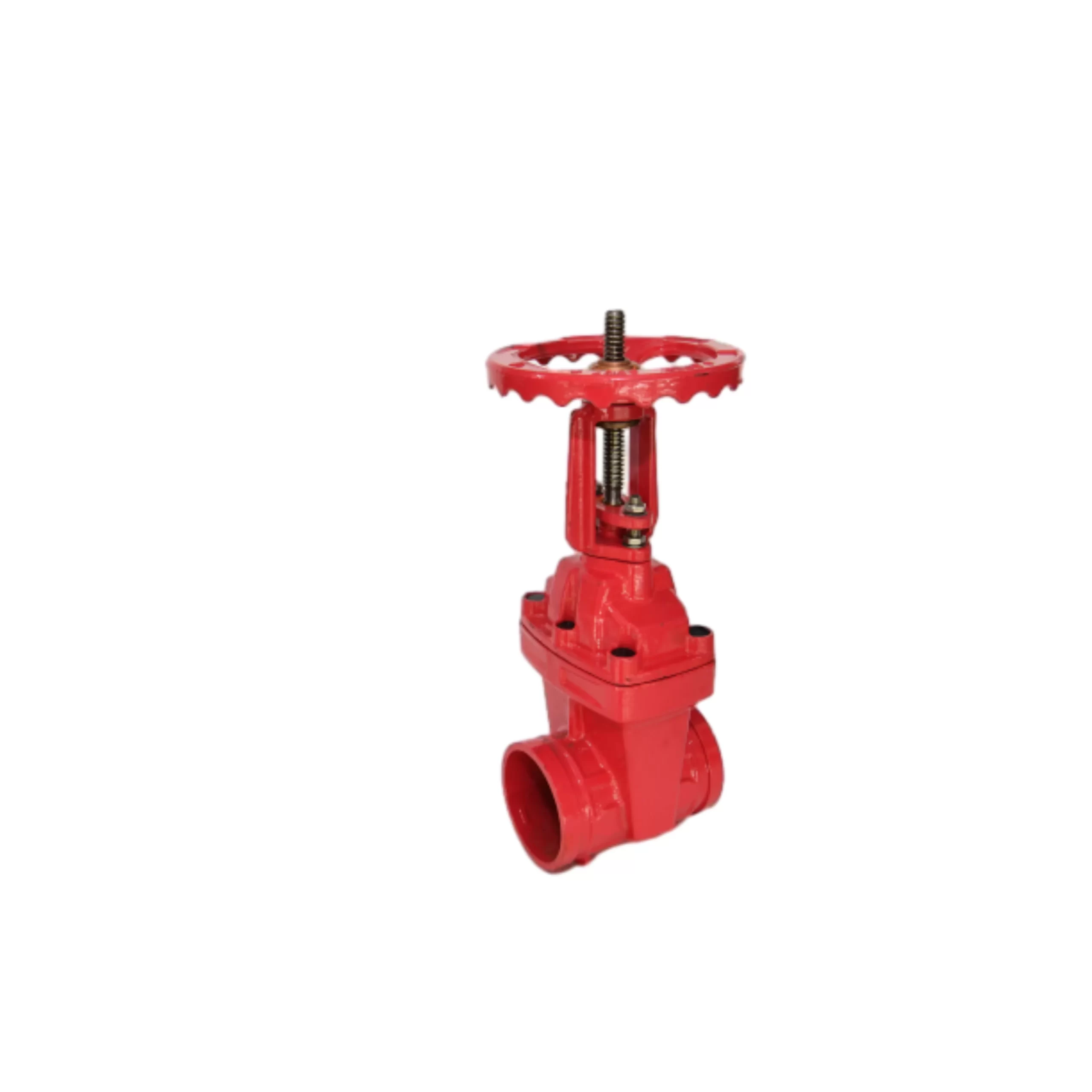

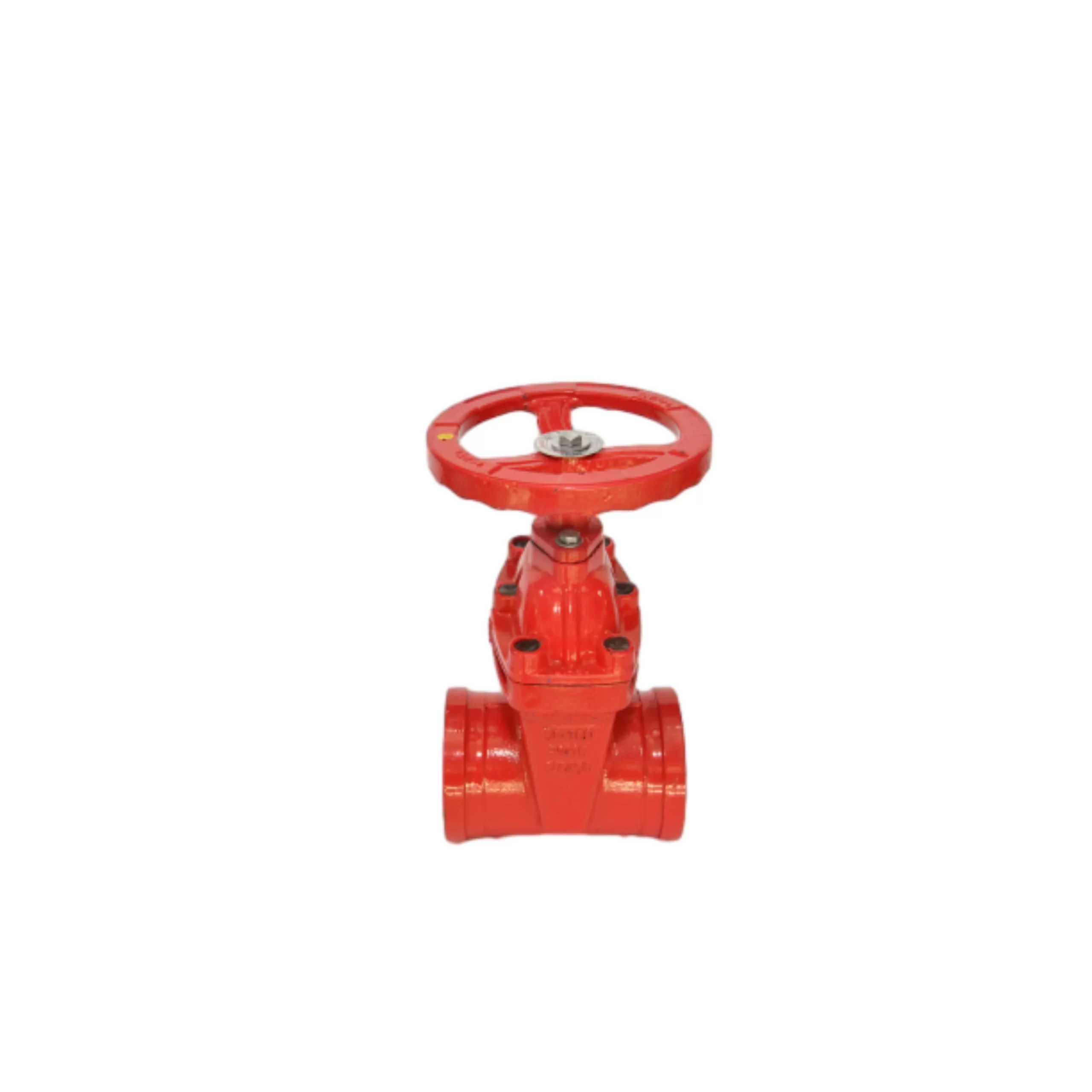

Guardian Of Industrial Arteries – Grooved Rising Stem Gate Valve

Core Technologies

• Dual Sealing System: The valve plate is made of precision-polished 304 stainless steel, paired with an EPDM rubber sealing ring, forming a metal + soft seal dual barrier, achieving the highest sealing level of GB/T13927.

• Exposed Stem Visualization: The exposed valve stem design allows for direct observation of the valve opening. The threaded parts are hard chrome plated, improving wear resistance by 300%.

• Grooved Quick Installation: Adopting national standard grooved pipe fittings, installation is 5 times faster than flanged types, and maintenance does not require pipe disassembly.

Performance Parameters

▶ Pressure Range: 1.0-2.5MPa

▶ Applicable Temperature: -30℃ to 130℃

▶ Flow Characteristics: Full-bore design, flow resistance coefficient ≤0.08

▶ Opening and Closing Life: ≥5000 complete cycle tests

Application Scenarios

▲ Fire Protection Systems: Automatic sprinkler network main pipeline control

▲ Municipal Engineering: Zoned water supply network node control

▲ Industrial Circulation: Cooling water system medium cutoff

▲ Commercial Buildings: Air Conditioning Water System Flow Regulation

Smart Upgrade

Optional Features:

• Opening Indicator Dial (Accuracy ±2°)

• Remote Electric/Pneumatic Actuator Interface

• IoT Valve Status Sensor

Installation Instructions

Remove burrs from pipe ends and ensure the sealing groove is clean.

Apply lubricant evenly to the rubber sealing ring and insert it into the groove.

After the valve body is in place, tighten the limit bolts symmetrically to the specified torque.

The valve body is integrally cast from ductile iron QT450, with an epoxy resin coating achieving C4 corrosion resistance. Each valve undergoes a helium gas chromatography leak test at 1.5 times the pressure for 30 minutes.
